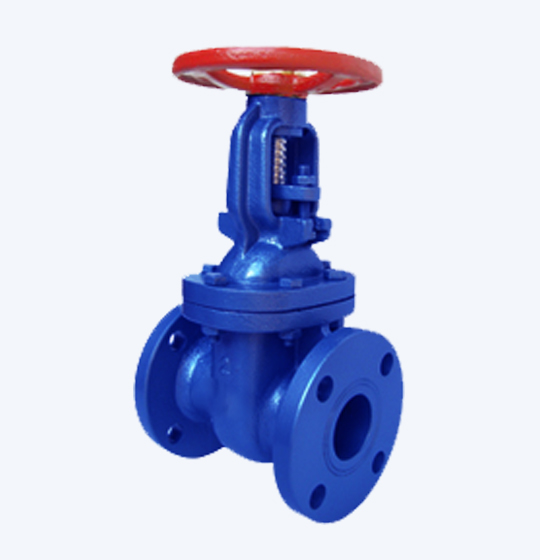

Gate Valve

Working Temperature: -20 ^oC to 350 ^oC
Working Pressure : 10 to 16 kgf/cm²
Size : DN 40 mm.to DN 300 mm.
Conn.: Flanges. PN10/JIS 10K/ANSI 150P
Parts Materials
Body   :   Cast iron
Bonnet   :  Cast iron
Stem  :  Stainless steel
Disc  :  Cast iron
Disc seat ring  :  Bronze, Stainless Steel
Body seat ring : Bronze, Stainless Steel
Gland  :  Cast iron
Gland packing : Asbestos graphite
Handwheel  :  Cast iron
Gasket  :  Asbestos joint sheet
Gland bolt / nut  :  Steel
Bonnet bolt / nut  :  Steel
Yoke Sleeve  :  Brass
Yoke  :  Cast iron
Yoke bolt / nut  :  Steel
