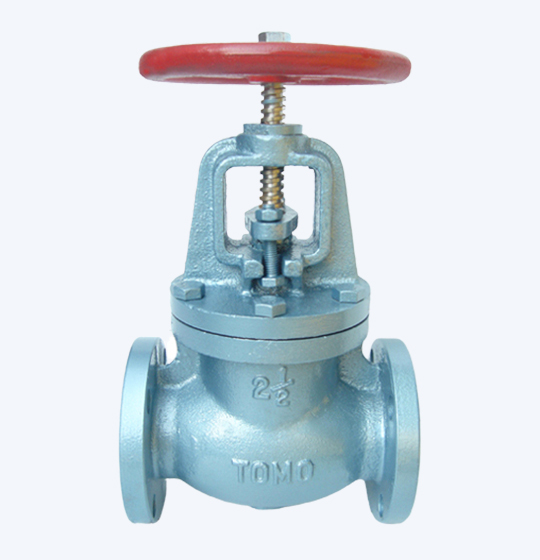

TOMO Globe Valve Metal Rising Stem OS&Y

Working Temperature: -20 ^oC to 350 ^oC
Working Pressure : 10 to 16 kgf/cm²
Size : DN 50 mm.to DN 200 mm. (* No size 125 mm.)
Conn.: Flanges. PN10/JIS 10K/ANSI 150P

Parts Materials
Parts   :   Materials
Body  :  Cast iron
Bonneta   :   Cast iron
Stem   :   Stainless steel
Disc   :   Cast iron
Disc seat ring   :   Bronze
Body seat ring   :   Bronze
Gland   :   Cast iron
Gland packing   :   Asbestos graphite
Handwheel   :   Cast iron
Gasket   :   Asbestos joint sheet
Gland bolt / nut   :   Steel
Bonnet bolt / nut   :   Steel
Yoke bush   :   Brass
