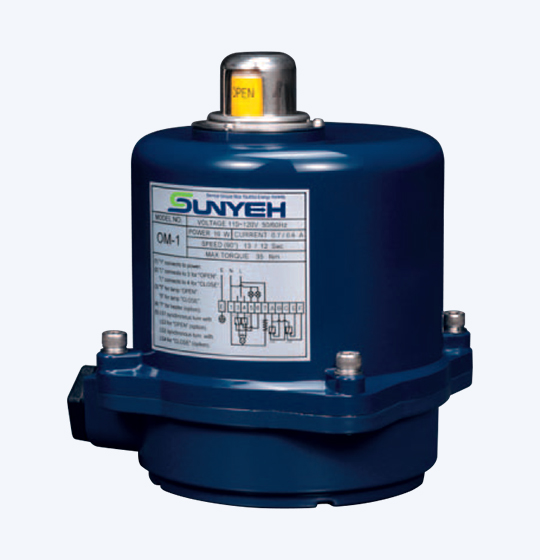

Products Infomation

Enclosure :
• IP 67 , NEMA 4X: Water-proof and dust-proof enclosure.
• Cover material: Dry powder coating aluminum alloy
• Base material: Dry powder coating aluminum alloy.

Motor :
• F (Standard) or H (Optional) insulation class for all models.
• Built-in thermal protection prevents motor burning out.
AC motor：125±5℃/257±9℉
DC motor：90±5℃/194±9℉

Duty Cycle :
• 30％duty cycle (Standard Model)
• 75％duty cycle (Optional)

Working Conditions :
• Ambient temperature：-30℃ ~ +65℃ / -22℉ ~ +149℉
• The humidity：30％ ~ 95％

Position Indicator :
• All models have continuous mechanism position indicator on the top of actuator cover.

Gear Train :
• Gear trains have been already lubricated sufficiently with anti-high temperature lubricant at the factory.

Conduit entrance：
• Standard : 1/2" PS
• Optional : 3/4" PF, 1/2" NPT, M20

Various voltage：
• AC/DC 12V
• AC/DC 24V
• AC 110/220V，1-Phase

Enclosure：
• Nylon coating
• E.D. coating
• Epoxy coating

Motor insulation class：
• Standard: F class
• Optional: H class

Fieldbus connectivity：
• Modbus

Working angle：
• Standard: 0~90°
• Optional: 91~270°
